MCKNR / L
MCKNR/L External holder for turning application. It is used on CNC and manual lathe. It can be right (R) and left (L) hand.
We suggest this holder to recuperate the unusued edges of CNMG inserts.
This holder can mount the following inserts styles:
- CNMG
- CNMA
- CNGA
Spare Parts:
CN.. 43. insert: - ICSN 433 (shim), CL 20 (clamp), XNS-48 (screw clamp), NL 46 (lock pin), CH 1/8 (allen key), CH 3/32 (allen key);
CN.. 54. insert: - ICSN 533 (shim), CL 12 (clamp), XNS-510 (screw clamp), NL 58 (lock pin), CH 1/8 (allen key), CH 5/32 (allen key);
CN.. 64. insert: - ICSN 633 (shim), CL 12 (clamp), XNS-510 (screw clamp), NL 68 (lock pin), CH 9/64 (allen key), CH 5/32 (allen key);
Notes: this product includes shim, clamp group, lock pin and 2 allen keys; inserts are not included.
We suggest this holder to recuperate the unusued edges of CNMG inserts.
This holder can mount the following inserts styles:
- CNMG
- CNMA
- CNGA
Spare Parts:
CN.. 43. insert: - ICSN 433 (shim), CL 20 (clamp), XNS-48 (screw clamp), NL 46 (lock pin), CH 1/8 (allen key), CH 3/32 (allen key);
CN.. 54. insert: - ICSN 533 (shim), CL 12 (clamp), XNS-510 (screw clamp), NL 58 (lock pin), CH 1/8 (allen key), CH 5/32 (allen key);
CN.. 64. insert: - ICSN 633 (shim), CL 12 (clamp), XNS-510 (screw clamp), NL 68 (lock pin), CH 9/64 (allen key), CH 5/32 (allen key);
Notes: this product includes shim, clamp group, lock pin and 2 allen keys; inserts are not included.

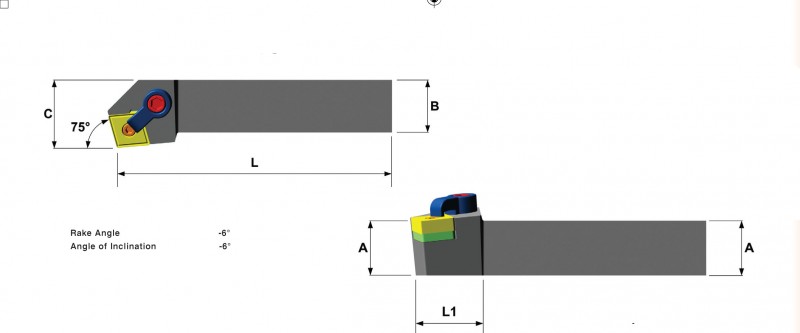

Product Name
A
B
L
C
L1
SFM
