MSKNR / L

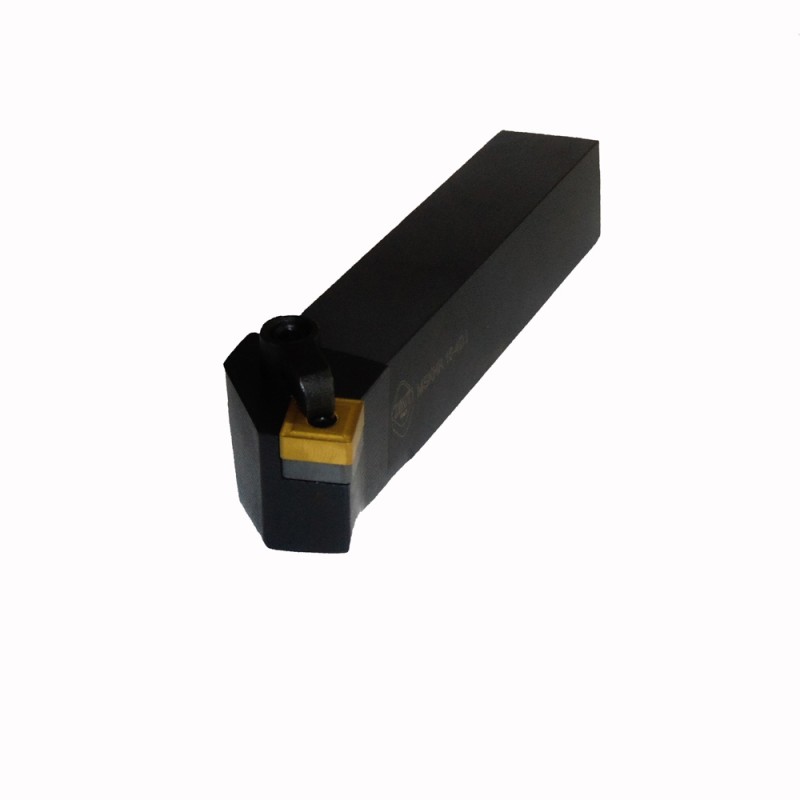

MSKNR/L External holder for turning application. It is used on CNC and manual lathe. It can be right (R) and left (L) hand.
We suggest this holder for facing.
This holder can mount the following inserts:
- SNMA
- SNMG
- SNMM
Spare Parts:
MSKNR/L 12 -4B 43. insert: - ISSN -433 (shim), NL-46 (lock pin), CL-12 (clamp), XNS-510 (screw clamp), CH 3/32 (allen key), CH 5/32 (allen key);
SN.. 43. insert: - ISSN 433 (shim), NL-46 (lock pin), CL-9 (clamp), XNS-48 (screw clamp), CH 3/32 (allen key), CH 1/8 (allen key);
SN.. 54. insert: - ISSN 533 (shim), NL-58 (lock pin), CL-12 (clamp), XNS-510 (screw clamp), CH 1/8 (allen key), CH 5/32 (allen key);
SN.. 64. insert: - ISSN 633 (shim), NL-68 (lock pin), CL-12 (clamp), XNS-510 (screw clamp), CH 9/64 (allen key), CH 5/32 (allen key);
Notes: this product includes shim, clamp group, lock pin and 2 allen keys; inserts are not included.
We suggest this holder for facing.
This holder can mount the following inserts:
- SNMA
- SNMG
- SNMM
Spare Parts:
MSKNR/L 12 -4B 43. insert: - ISSN -433 (shim), NL-46 (lock pin), CL-12 (clamp), XNS-510 (screw clamp), CH 3/32 (allen key), CH 5/32 (allen key);
SN.. 43. insert: - ISSN 433 (shim), NL-46 (lock pin), CL-9 (clamp), XNS-48 (screw clamp), CH 3/32 (allen key), CH 1/8 (allen key);
SN.. 54. insert: - ISSN 533 (shim), NL-58 (lock pin), CL-12 (clamp), XNS-510 (screw clamp), CH 1/8 (allen key), CH 5/32 (allen key);
SN.. 64. insert: - ISSN 633 (shim), NL-68 (lock pin), CL-12 (clamp), XNS-510 (screw clamp), CH 9/64 (allen key), CH 5/32 (allen key);
Notes: this product includes shim, clamp group, lock pin and 2 allen keys; inserts are not included.

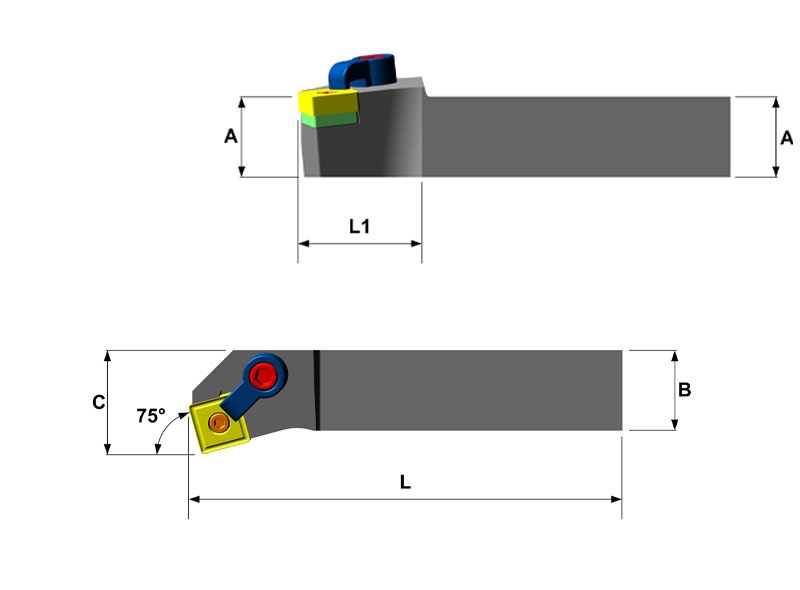

Product Name
A
B
L
C
L1
SFM
