S.. MFLSR / L

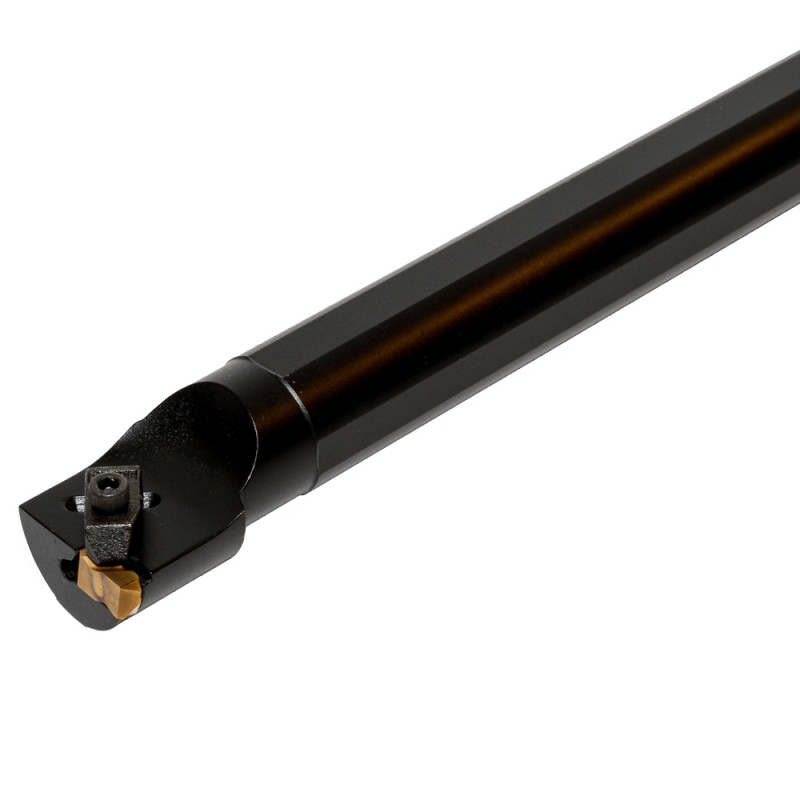

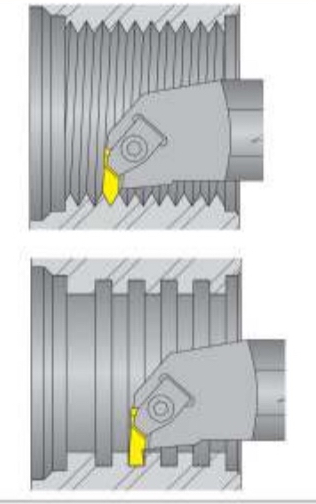

S.. MFLSR/L Internal Holder for Threading and Grooving application. It mounts Top Notch style inserts. Right bar(R) mounts left Top Notch inserts(L).
Left Bar (L) mounts Right Top Notch inserts (R).
Spare Parts:
- CM (clamp); Correlations: 2R CM....CM75; 2L ...CM74; 3R and 4r.... CM73; 3L and 4L ....CM72.
- S- (screw clamp) Correlations: CM75 and CM74 ...S-310; CM73 and CM72 .....S-412.
- CH (allen key) Correlations: S-310...CH 2,5; S-412...CH 5/32.
This holder can mount the following inserts: - ZNT (threading)
- ZNG (grooving)
- ZNR (full radius)
Notes: this product includes clamp, screw clamp and an allen key; inserts are not included.
Left Bar (L) mounts Right Top Notch inserts (R).
Spare Parts:
- CM (clamp); Correlations: 2R CM....CM75; 2L ...CM74; 3R and 4r.... CM73; 3L and 4L ....CM72.
- S- (screw clamp) Correlations: CM75 and CM74 ...S-310; CM73 and CM72 .....S-412.
- CH (allen key) Correlations: S-310...CH 2,5; S-412...CH 5/32.
This holder can mount the following inserts: - ZNT (threading)
- ZNG (grooving)
- ZNR (full radius)
Notes: this product includes clamp, screw clamp and an allen key; inserts are not included.
Product Name
D
A
C
F
D.min.
SFM
S16T MFLSL 3
D:1.000
A:1.375
C:12.000
F:.688
D.min.:1.250
Only for registered users
Related Products
S16T MFLSR 3
D:1.000
A:1.375
C:12.000
F:.688
D.min.:1.250
Only for registered users
Related Products
S20U MFLSL 3
D:1.250
A:1.750
C:14.000
F:.875
D.min.:1.500
Only for registered users
Related Products
S20U MFLSR 3
D:1.250
A:1.750
C:14.000
F:.875
D.min.:1.500
Only for registered users
Related Products
S20U MFLSL 4
D:1.250
A:1.750
C:14.000
F:.875
D.min.:1.500
Only for registered users
Related Products
S20U MFLSR 4
D:1.250
A:1.750
C:14.000
F:.875
D.min.:1.500
Only for registered users
Related Products
S24U MFLSL 4
D:1.500
A:2.000
C:14.000
F:1.000
D.min.:2.000
Only for registered users
Related Products
S24U MFLSR 4
D:1.500
A:2.000
C:14.000
F:1.000
D.min.:2.000
Only for registered users
Related Products
