TBX

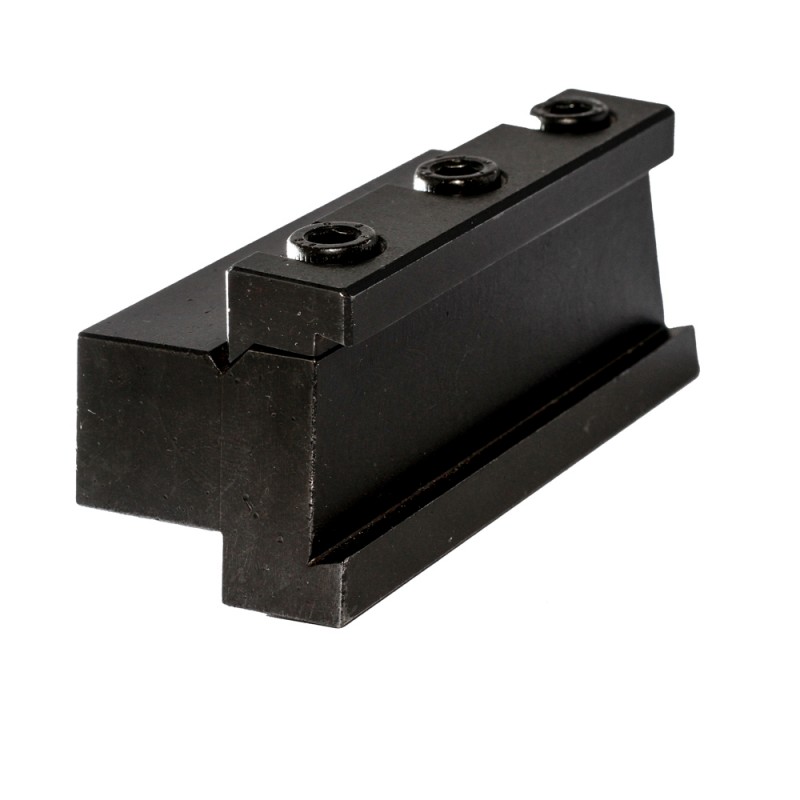

TBX Tool Block for all cut-off blades.
TBX is standard and can fit all blades, both metric both inch; in the related products you can find the specific size of blades can fit into the tool block.
It is particularly suitable for easy set-up on CNC machines thanks to its special block clamp.
Spare parts:
- VS 6 (screws)
- CH 5 (allen key)
Notes: This product contains screw and an allen key; blades or cut-off inserts are not included.
TBX is standard and can fit all blades, both metric both inch; in the related products you can find the specific size of blades can fit into the tool block.
It is particularly suitable for easy set-up on CNC machines thanks to its special block clamp.
Spare parts:
- VS 6 (screws)
- CH 5 (allen key)
Notes: This product contains screw and an allen key; blades or cut-off inserts are not included.

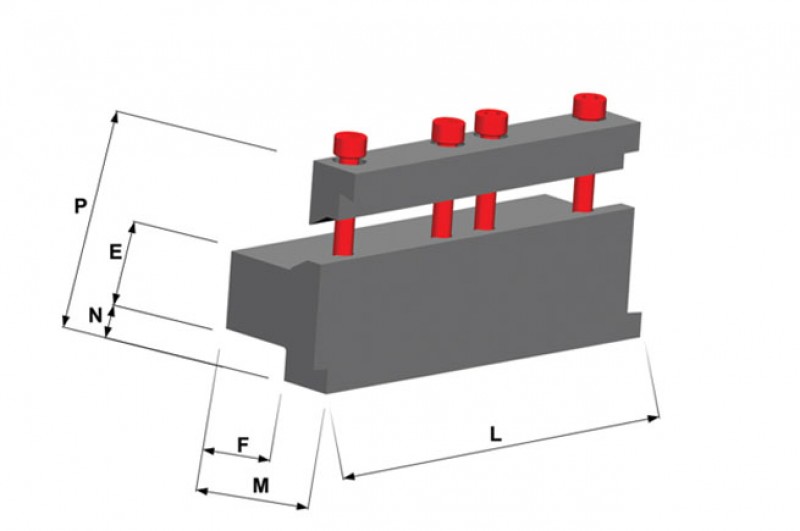

Product Name
B
E
F
L
M
N
P
SFM
TBX 19-5
B:1.024
E:.750
F:.748
L:3.425
M:1.299
N:.315
P:1.535
Only for registered users

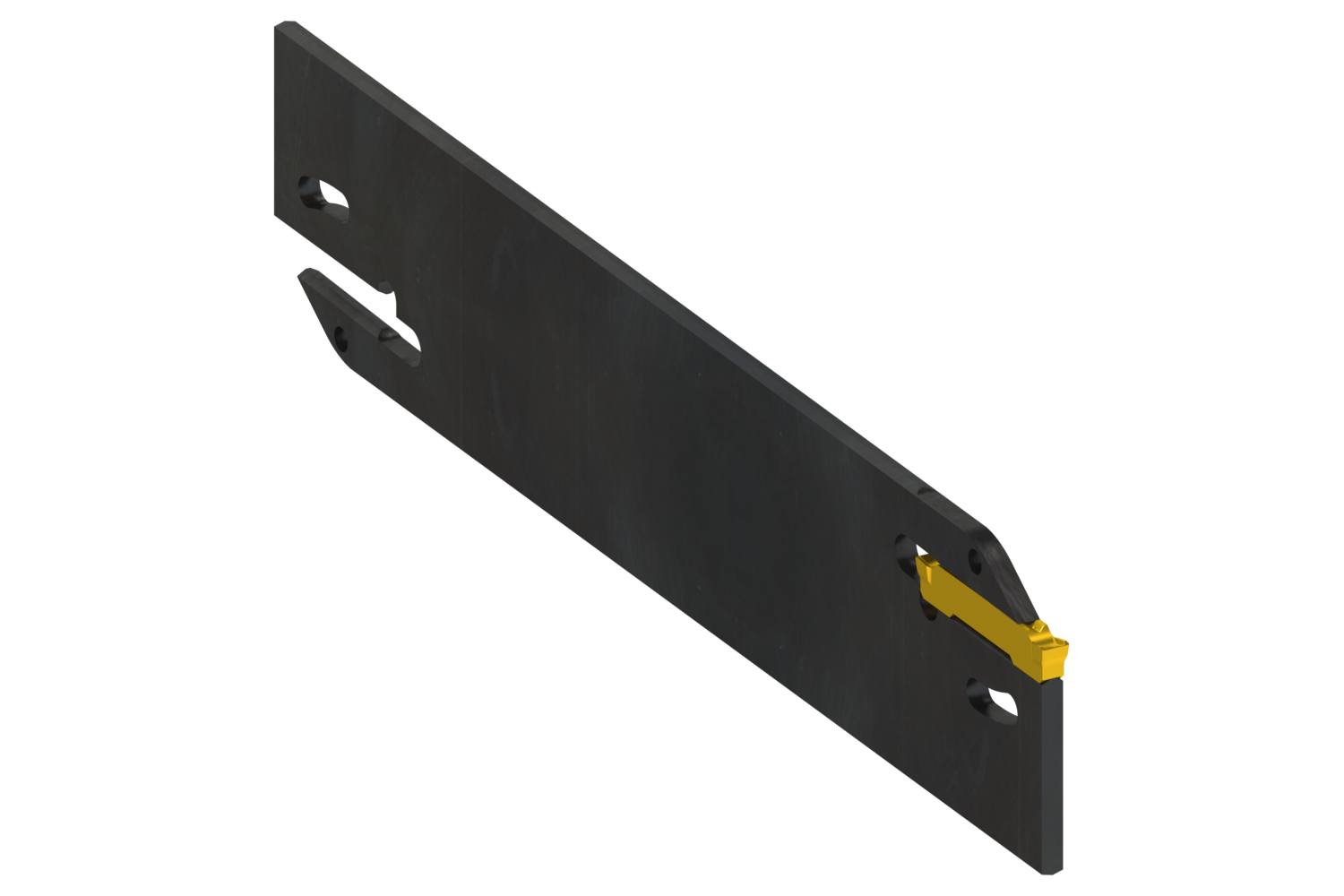

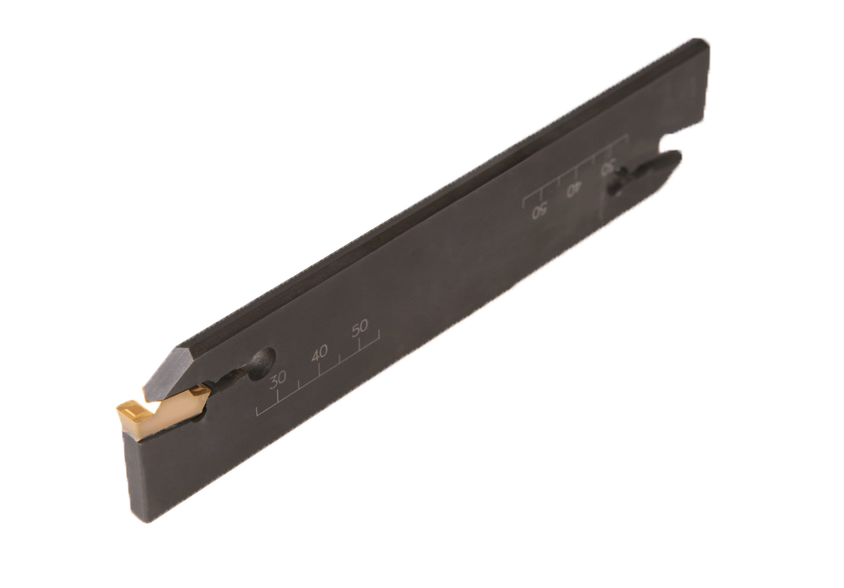

Related Products
TBX 25.4-6
B:1.260
E:1.000
F:.787
L:4.331
M:1.417
N:.315
P:1.890
Only for registered users
Related Products
TBX 31.8-6
B:1.260
E:1.250
F:1.102
L:4.724
M:1.732
N:.118
P:1.890
Only for registered users
Related Products
TBX 50-9
B:1.969
E:2.000
F:1.496
L:5.315
M:2.323
N:.354
P:3.071
Only for registered users
