TWLNR / L

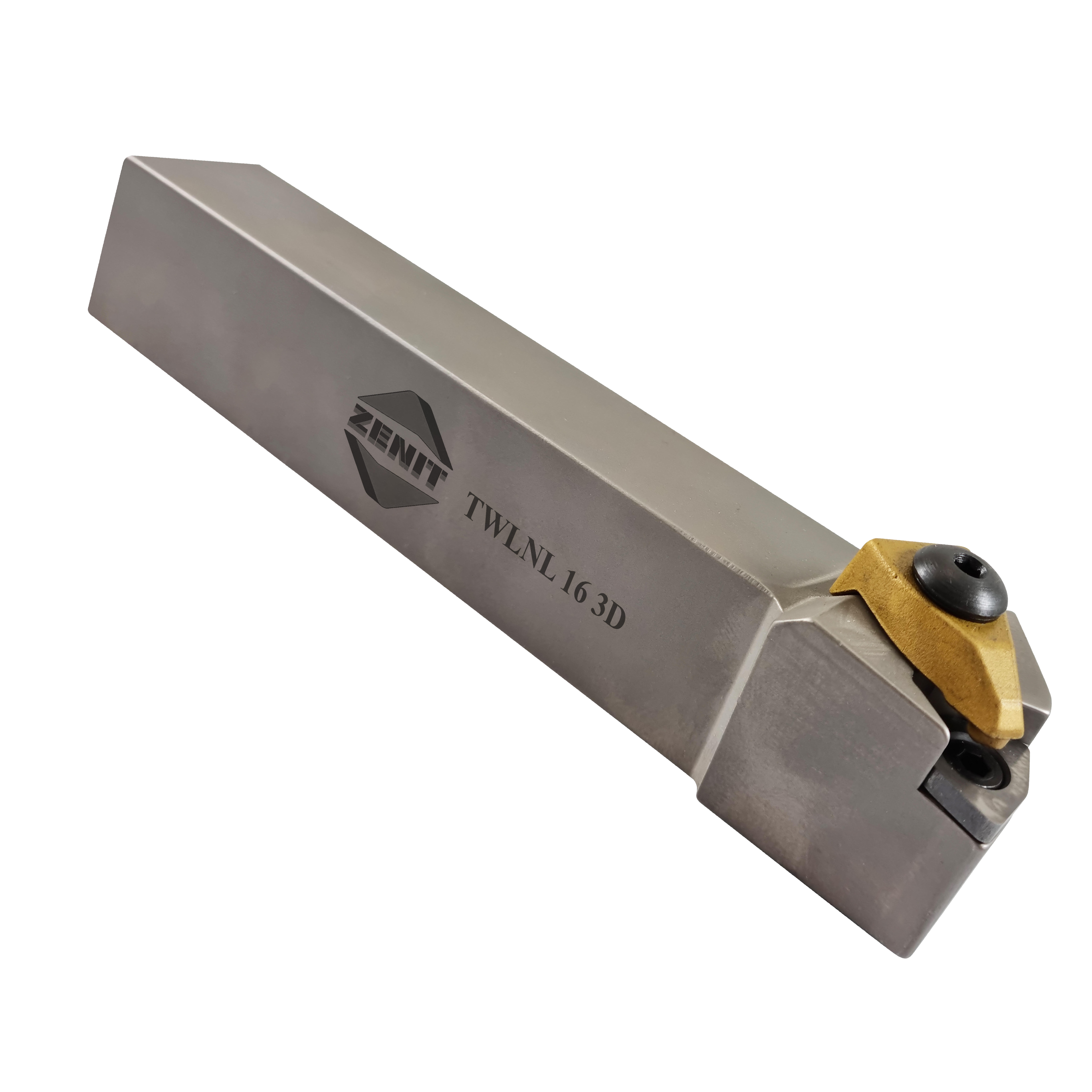

TWLNR/L New External holder for turning application. It is used on CNC and manual lathe. It can be right (R) and left (L) hand.
This holder can mount the following inserts styles:

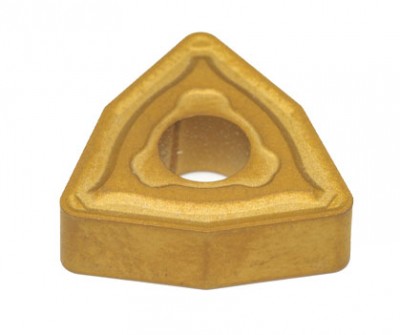

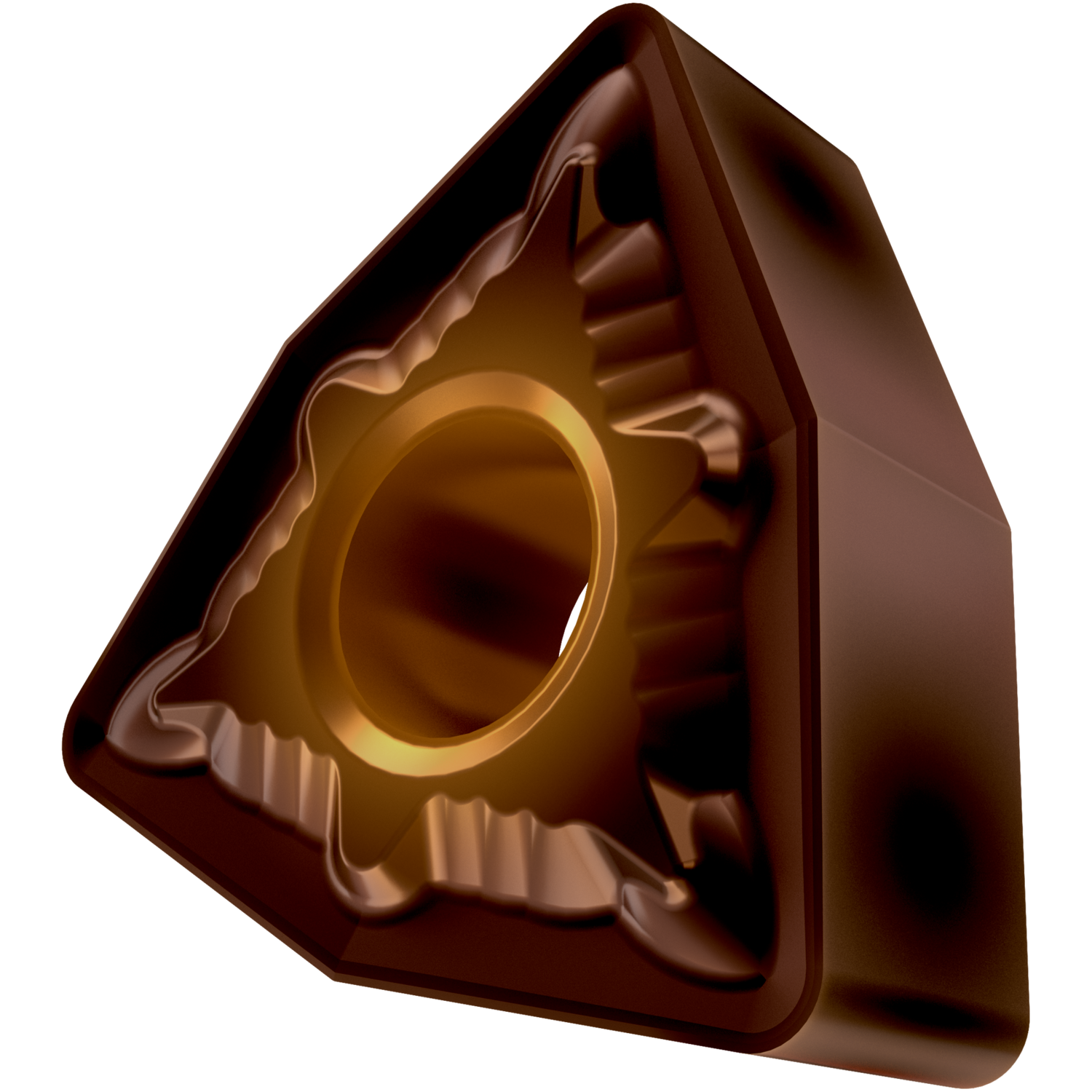

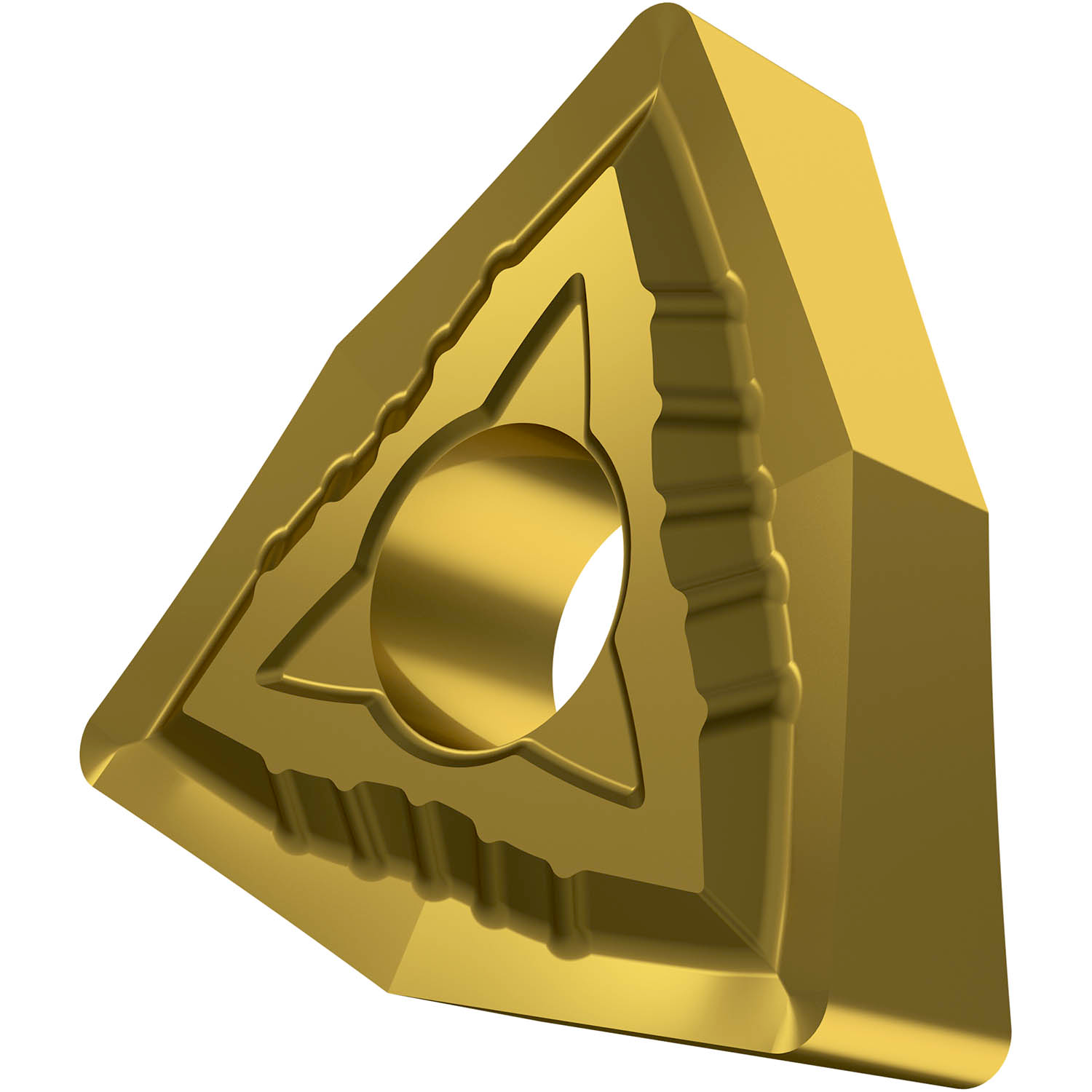

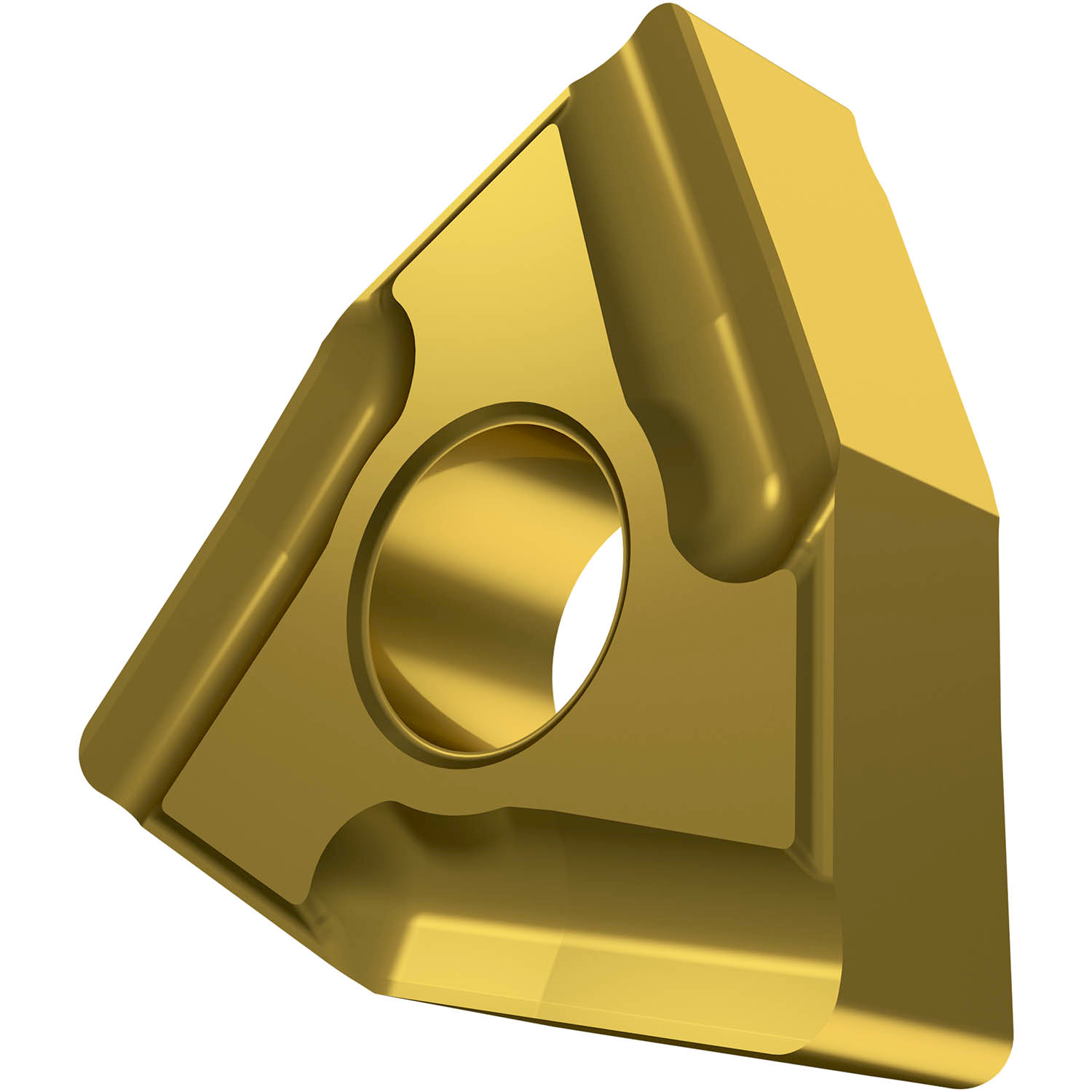

- WNMG

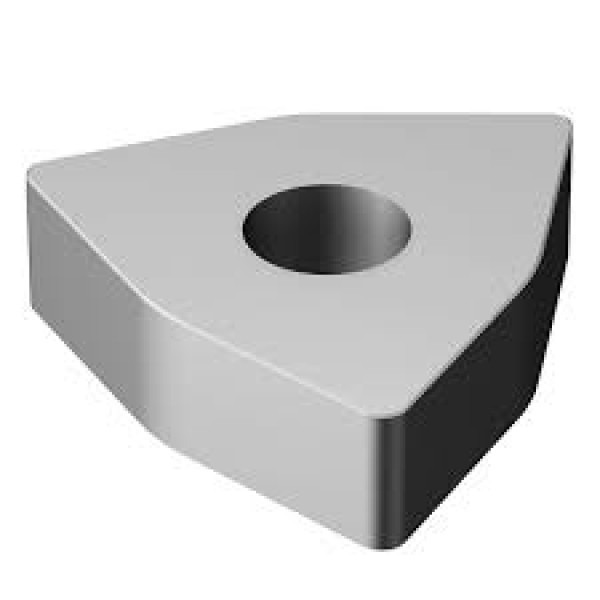

- WNMA
- WNGA
Spare Parts:

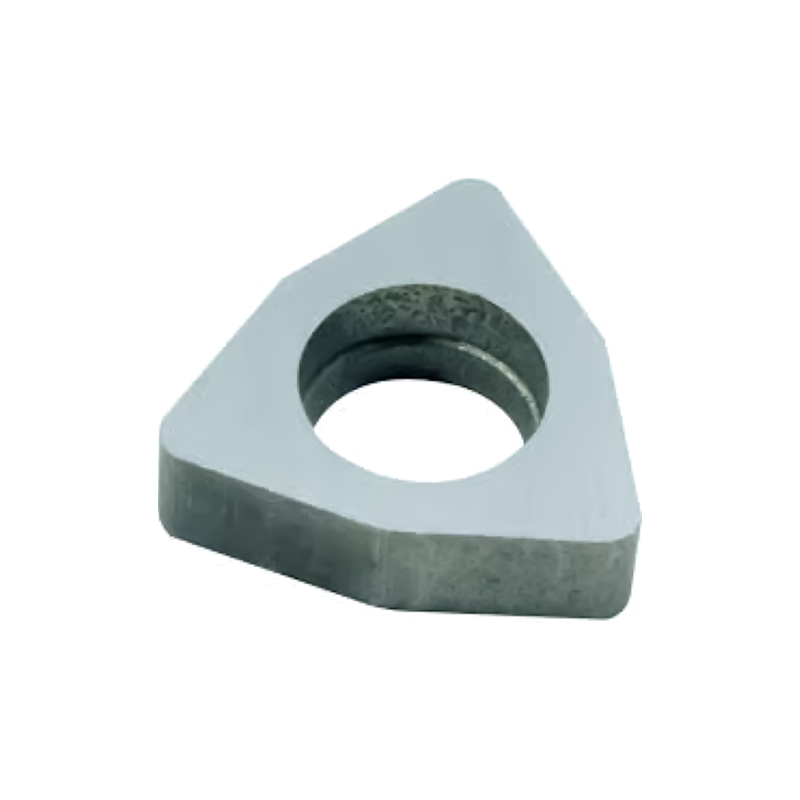

WN.. 33. insert: - IWSN 322-T (shim), CL-01-T (wedge clamp), XNS-M5-T(screw clamp), 5B1-T (Shim screw), CH 3 (allen key). S01-T(ring), WAB-01-T(washer);
WN.. 43. insert: - IWSN 433-T (shim), CL-02-T (wedge clamp), XNS-M6-T(screw clamp), 5B2-T (Shim screw), CH 3 (allen key), S01-T(ring), WAB-01-T(washer);
Notes: this product includes shim, clamp group, shim screw and 1 allen key; inserts are not included.
- WNMG
- WNMA
- WNGA
Spare Parts:
WN.. 33. insert: - IWSN 322-T (shim), CL-01-T (wedge clamp), XNS-M5-T(screw clamp), 5B1-T (Shim screw), CH 3 (allen key). S01-T(ring), WAB-01-T(washer);
WN.. 43. insert: - IWSN 433-T (shim), CL-02-T (wedge clamp), XNS-M6-T(screw clamp), 5B2-T (Shim screw), CH 3 (allen key), S01-T(ring), WAB-01-T(washer);
Notes: this product includes shim, clamp group, shim screw and 1 allen key; inserts are not included.

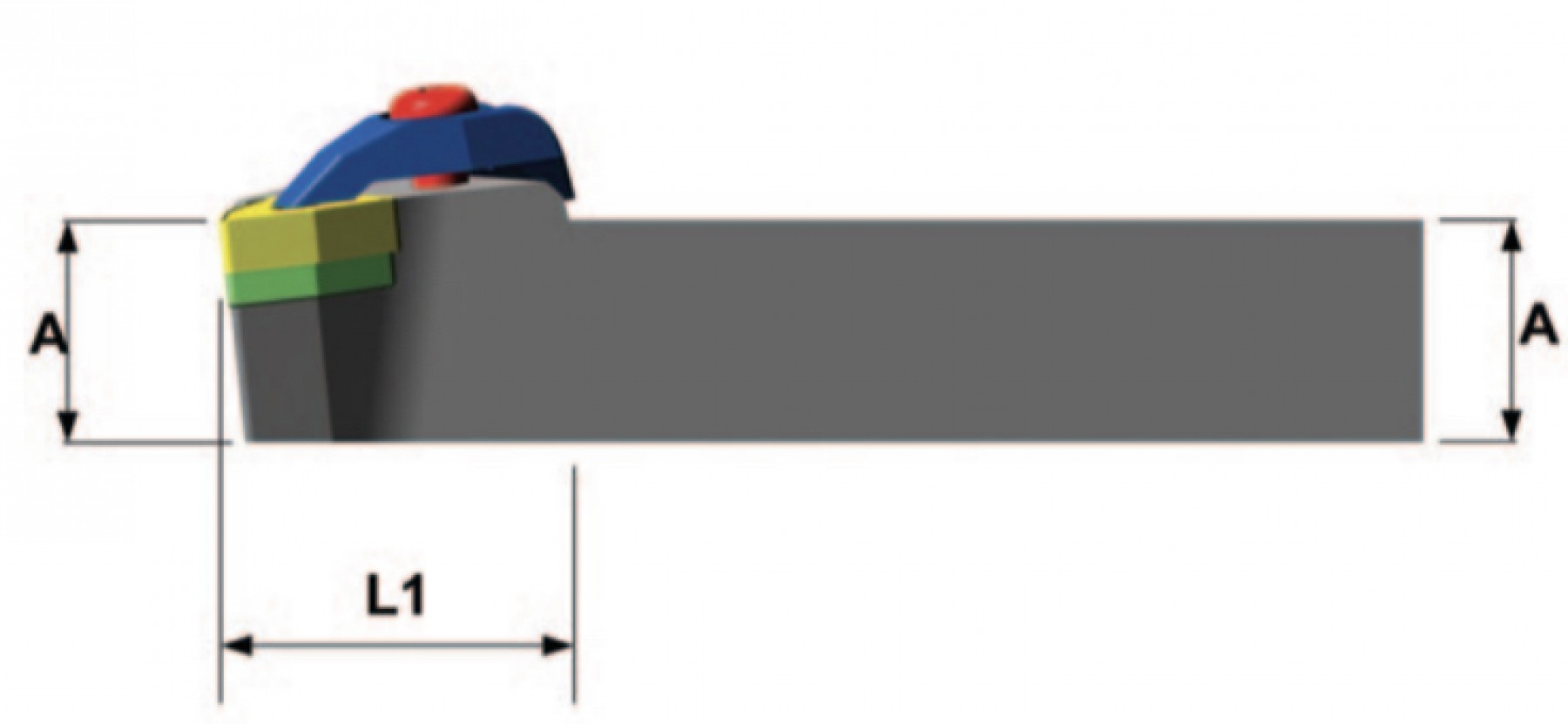

Product Name
A
B
L
C
L1
SFM
