ZSER / L

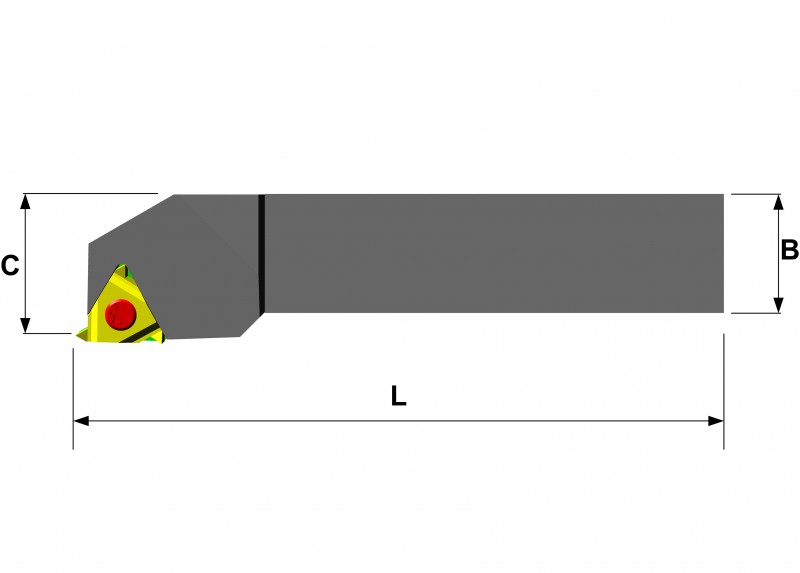

ZSER-L External Lay Down insert for Threading application. The right holder(R) mounts ER style inserts. Left holder (L) mounts EL style
inserts.
This holder can mount the following inserts sizes :

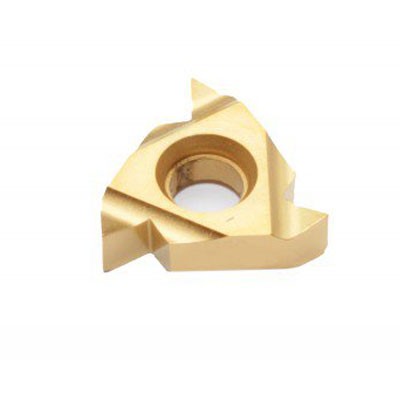

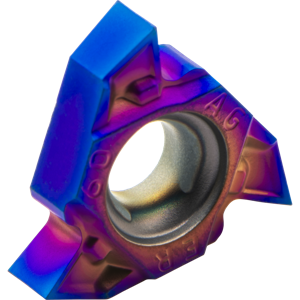

- Z11ER/EL
- Z16ER/EL
- Z22ER/EL
Spare Parts:
Z11ER/EL - TS-25.4-6M2 (screw);
- CT 08 (screwdriver) for TS-25.4-6M2;

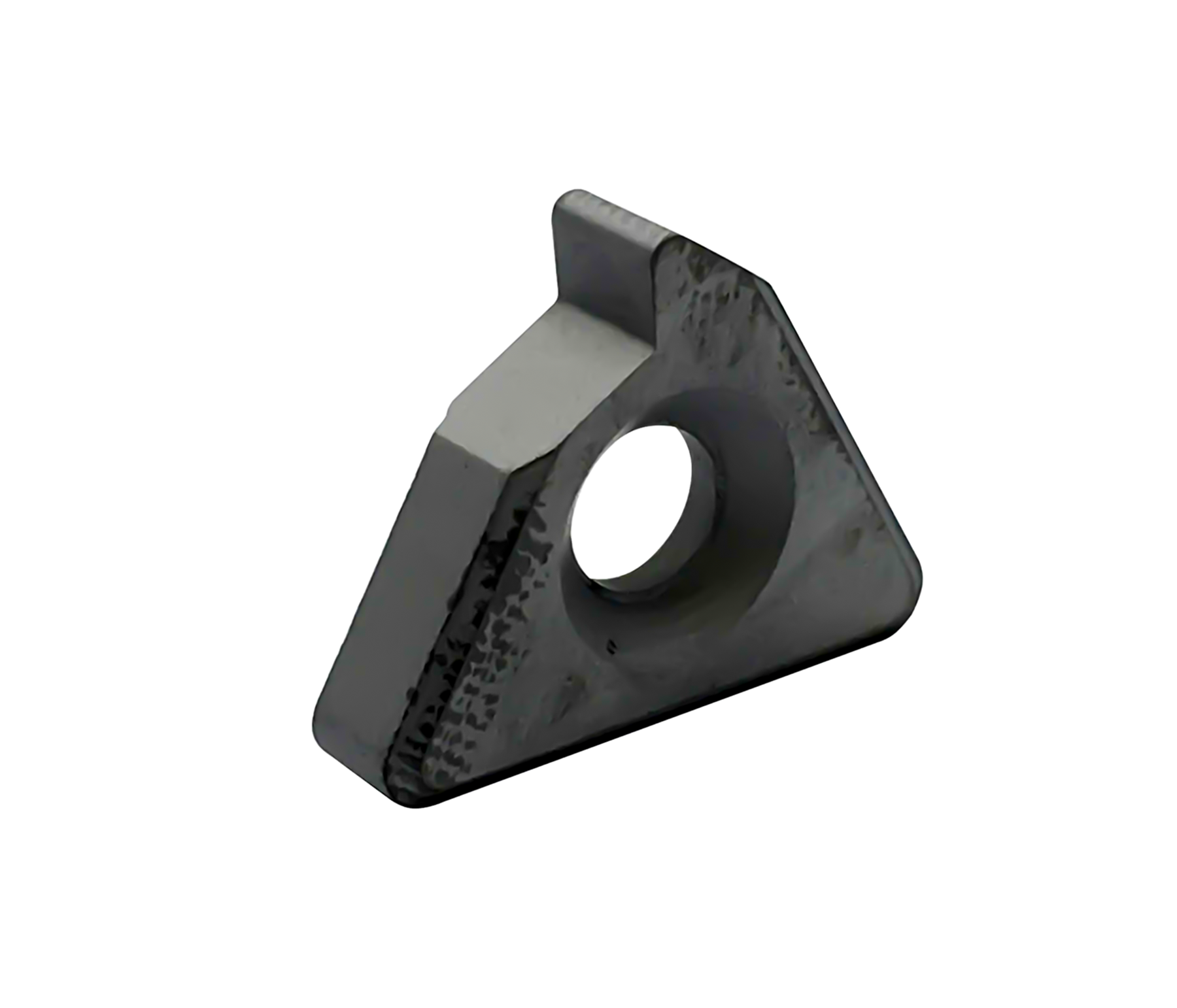

Z16ER/EL - GXE-16 (shim);
- TS-16 (screw);
- CT 10 (screwdriver) for TS-16;
Z22ER/EL - NXE 22 (shim);
- TS-22 (screw);
- CT 20 (screwdriver) for TS-22
Notes: this product includes shim, screw a screwdriver; inserts are not included.
inserts.
This holder can mount the following inserts sizes :
- Z11ER/EL
- Z16ER/EL
- Z22ER/EL
Spare Parts:
Z11ER/EL - TS-25.4-6M2 (screw);
- CT 08 (screwdriver) for TS-25.4-6M2;
Z16ER/EL - GXE-16 (shim);
- TS-16 (screw);
- CT 10 (screwdriver) for TS-16;
Z22ER/EL - NXE 22 (shim);
- TS-22 (screw);
- CT 20 (screwdriver) for TS-22
Notes: this product includes shim, screw a screwdriver; inserts are not included.
Product Name
A
B
L
L1
C
SFM
